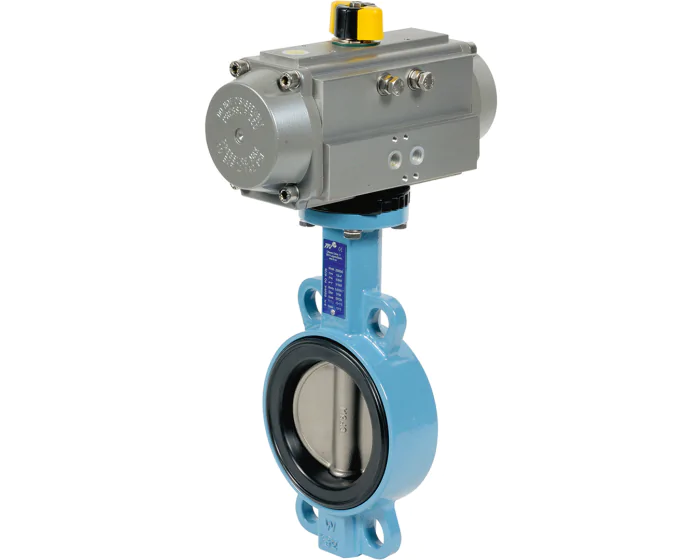

The 1154 butterfly valve has a ductile iron body, stainless steel disc and FKM seat. It is actuated with an ALPHAIR double acting or spring return pneumatic actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | 32 - 40 |
| Seat | FKM |
| Body material | Ductile iron |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting 32 - 40 | 260393017006R | S1002693 |
€336.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return 32 - 40 | 260393017107R | S1002694 |
€372.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Double acting | 260394017006R | S1002695 |
€362.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Spring return | 260394017107R | S1002696 |
€398.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260395017007R | S1002697 |
€388.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260395017108R | S1002698 |
€467.47
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Double acting | 260396017007R | S1002699 |
€416.11
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Spring return | 260396017108R | S1002700 |
€494.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Double acting | 260397017008R | S1002701 |
€507.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Spring return | 260397017109R | S1002702 |
€595.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Double acting | 260398017008R | S1002703 |
€645.81
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Spring return | 260398017110R | S1002704 |
€806.30
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Double acting | 260399017009R | S1002705 |
€831.56
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Spring return | 260399017111R | S1002706 |
€1,082.90
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Double acting | 260400017010R | S1002707 |
€1,142.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Spring return | 260400017112R | S1002708 |
€1,387.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN250 - 10'' | 260401017011R | S1002709 |
€2,156.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN250 - 10'' | 260401017113R | S1002710 |
€2,515.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN300 - 12'' | 260402017012R | S1002711 |
€2,543.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return DN300 - 12'' | 260402017115R | S1002712 |
€3,765.39
(excl. btw)
|
add to cart |
